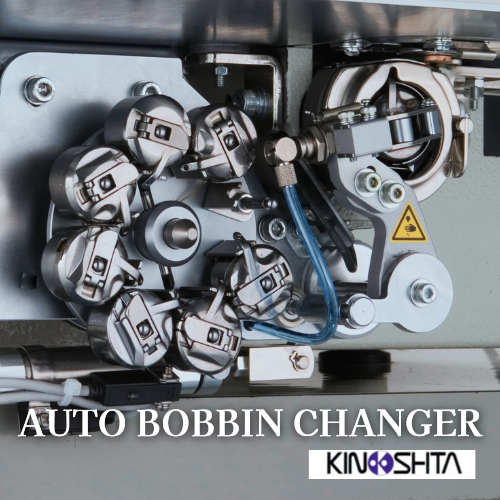

AUTO BOBBIN CHANGER
Major applications
car seats, airbags, safety belts, slings & belts, bed linen, curtain, home furnishing,
sports shoes, jeans, pocket setter, leather goods, various automated stitching systems
LOCKSTITCH
Most common & rigid stitch since 1850’s.
NO change in principal.
Lockstitch ? formed with 2 threads,LOCKED
But what if one of the threads RUN OUT?
Only limited amount of thread can be stored in a Bobbin.
Bobbin thread DOES run out as you sew ? without noticing !
With NO Bobbin Thread
:Incomplete seams.A lot of waste
:Unwanted needle holes.
:Automated sewing machine keeps running - on and on.
↓ ↓ ↓ ↓ ↓
:Defective product.
:Downtime.
:Unusable material.

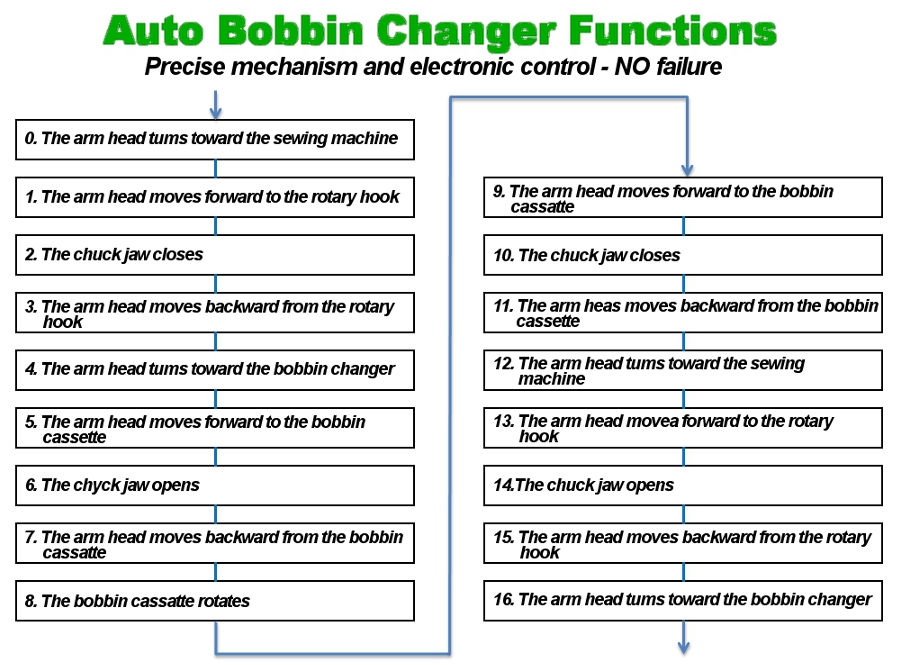

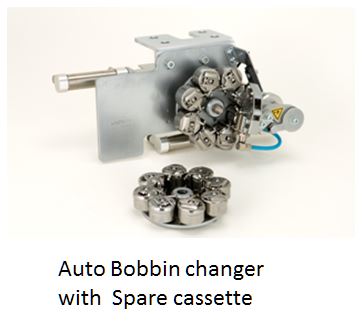

Change empty bobbin with thread-full bobbin automatically

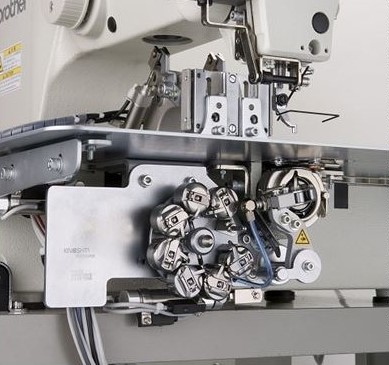

Automatically replaces empty bobbin case with thread-full one for non-stop stitching.

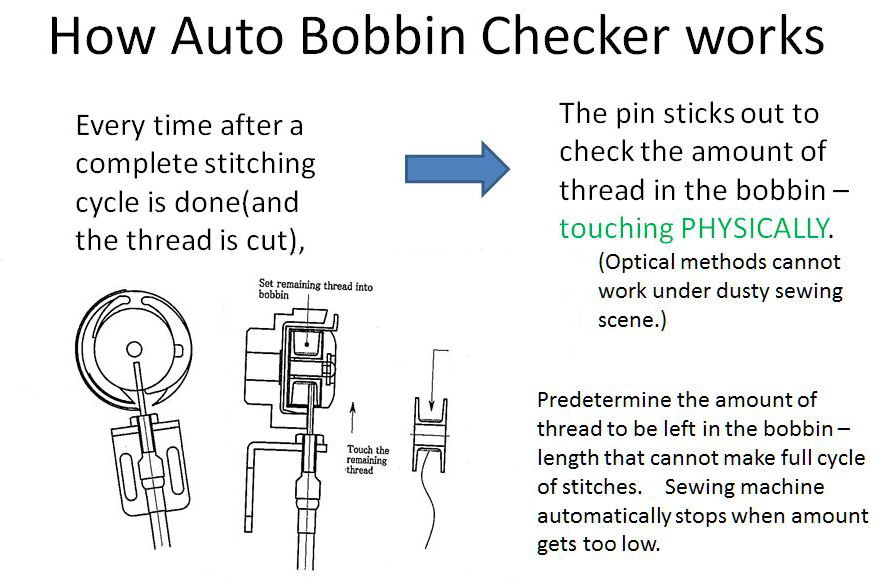

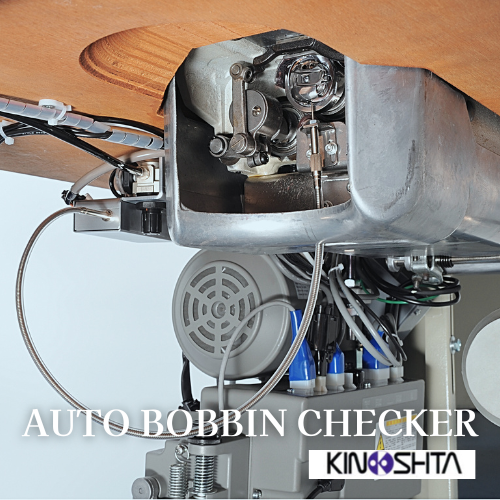

AUTO BOBBIN CHECKER
How can you notice the amount of remaining bobbin thread?
To always complete needed stitches without bobbin thread running out?
To avoid defective sewn products?
Detect remaining thread in the bobbin automatically & accurately
To be used alone or with Bobbin Changer

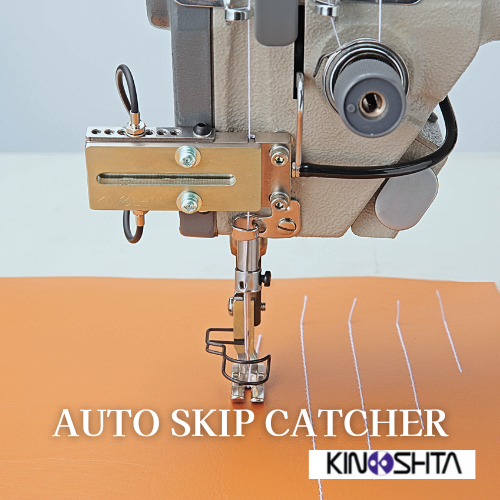

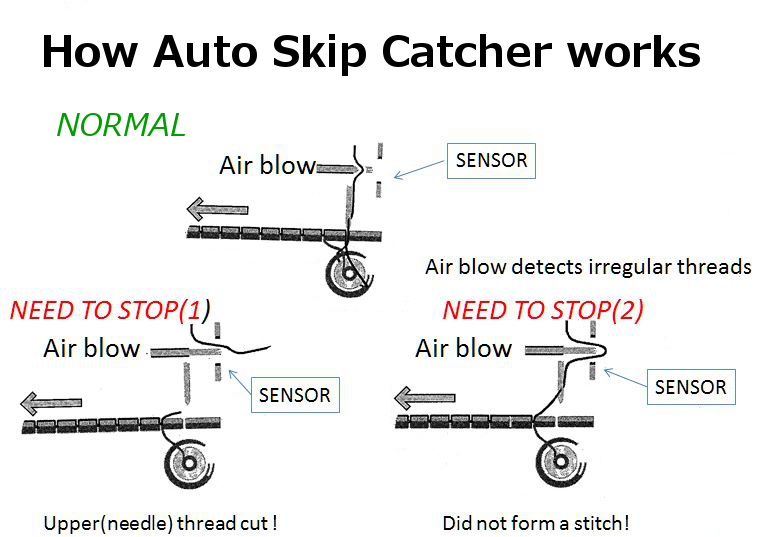

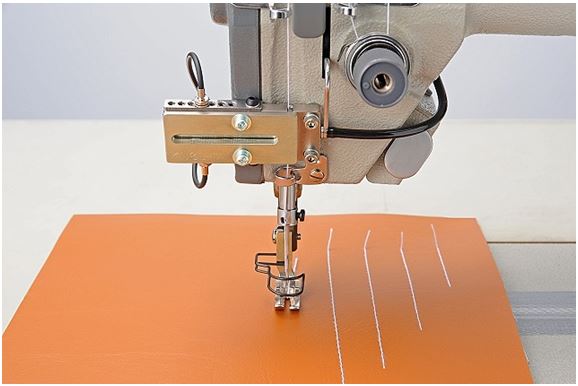

AUTO SKIP CATCHER
Another issue ? A SKIP of the Stitch
With NO Bobbin Thread
For a variety of reasons, the two threads
does not form a lockstitch and results as a SKIP.
It’s seldom to be found until inspections.
What do you do?
1. Do 100% inspection and redo the sewing - NG!
2. Close you eyes - NG!
3. See next page - GOOD!!!
To be used alone, or with B/changer and/or B/Checker
